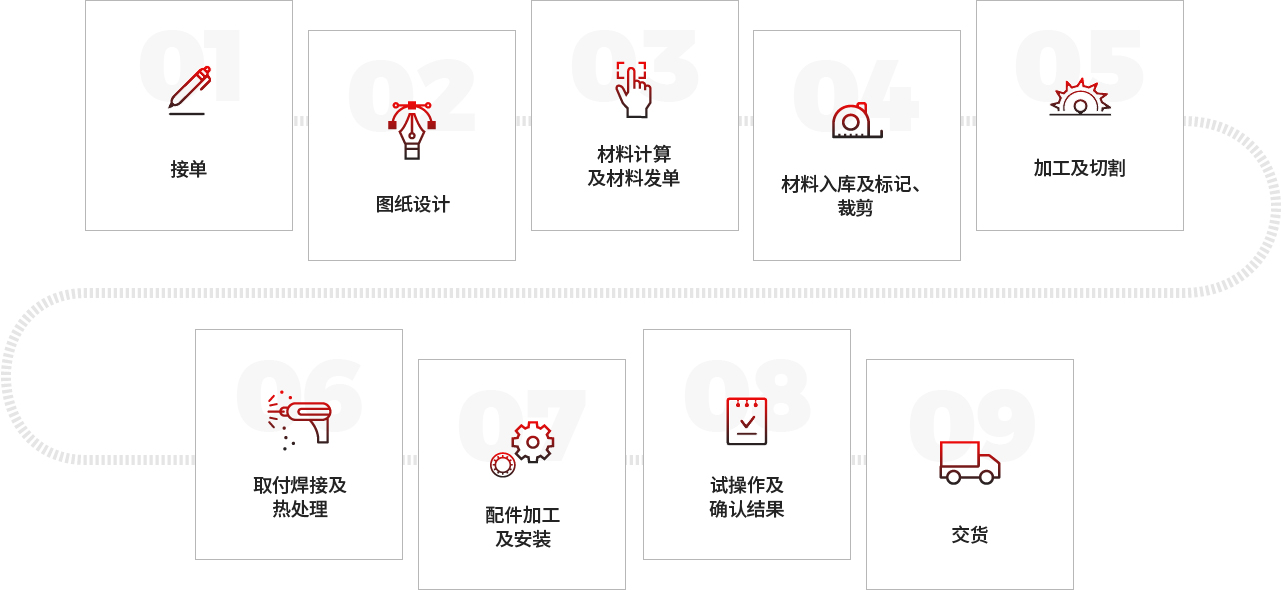

生产工程
SCREW SPIRAL
SINGLE SPIRAL
Stainless steel AISI304/AISI316 Shaft Less spiral
Technical Features and manufacturing tolerances
unit : mm
| nominal Screw Diameter | Tdchnical features | Tolerances | ||||||
|---|---|---|---|---|---|---|---|---|
| real EXT. DIA | Drawn Flat bar | Internal DIA | Spiral Length(1) 1/1 pitch | Spiral Length(1) 2/3 pitch | Spiral Length | External DIA | Pitch | |
| 150 | 146 | 35x15 | 76 | 1700 | 1200 | /+100 | /+1.5 | /+3.0 |
| 200 | 180 | 40x15/20 | 100 | 1700 | 1200 | /+100 | /+1.5 | /+3.0 |
| 250 | 233 | 50x16 | 133 | 1700 | 1200 | /+100 | /+1.5 | /+4.0 |
| 300 | 278 | 60x19 | 158 | 1700 | 1200 | /+100 | /+1.5 | /+4.0 |
| 400 | 360 | 70x20 | 220 | 1700 | 1200 | /+100 | /+1.5 | /+5.0 |
| 500 | 464 | 80x20/25 | 304 | 1700 | 1200 | /+100 | /+1.5 | /+6.0 |
DUAL SPIRAL
Stainless steel AISI304/AISI316 Shaft Less spiral
Technical Features and manufacturing tolerances
unit : mm
| nominal Screw Diameter | Tdchnical features | Tolerances | |||||||
|---|---|---|---|---|---|---|---|---|---|
| real EXT. DIA | External Drawn bar | Internal Drawn bar | Internal DIA | Spiral Length(1) 1/1 pitch | Spiral Length(1) 2/3 pitch | Spiral Length | External DIA | Pitch | |
| 150 | 146 | 35x15 | 15x8 | 46 | 1700 | 1200 | /+100 | /+1.5 | /+3.0 |
| 200 | 180 | 40x20 | 20x10 | 60 | 1700 | 1200 | /+100 | /+1.5 | /+3.0 |
| 250 | 233 | 50x25 | 35x10 | 63 | 1700 | 1200 | /+100 | /+1.5 | /+4.0 |
| 300 | 278 | 60x25 | 40x15 | 78 | 1700 | 1200 | /+100 | /+1.5 | /+4.0 |
| 400 | 360 | 70x25 | 50x15 | 120 | 1700 | 1200 | /+100 | /+2.0 | /+5.0 |
| 500 | 464 | 80x25 | 70x20 | 164 | 1700 | 1200 | /+100 | /+2.0 | /+6.0 |
Standard shaft less spiral APPROX weight
| nominal Screw DIA | Thickness (mm) |
APPROX. Weight | Thickness EXT./.INT (mm) |
APPROX. Weight | ||
|---|---|---|---|---|---|---|
| 1/1 pitch kg/m |
2/3 pitch kg/m |
1/1 pitch kg/m |
2/3 pitch kg/m |
|||
| 150 | 15 | 10.7 | 16.0 | 15mm/8mm | 12 | 18 |
| 200 | 15 | 12.0 | 18.0 | |||
| 200 | 20 | 15.9 | 23.9 | 20mm/10mm | 18 | 27 |
| 250 | 20 | 19.8 | 29.7 | |||
| 250 | 25 | 25.0 | 37.4 | 25mm/10mm | 29 | 43 |
| 300 | 20 | 24.5 | 36.8 | |||
| 300 | 25 | 30.6 | 45.9 | 25mm/15mm | 38 | 55 |
| 400 | 20 | 29.9 | 44.8 | |||
| 400 | 25 | 37.3 | 56.0 | 25mm/15mm | 48 | 69 |
| 500 | 20 | 34.1 | 51.4 | |||
| 500 | 25 | 42.7 | 64.0 | 25mm/20mm | 63 | 89 |
SHAFTLESS SPIRAL SCREW CONVEYORS
| Model | Angle | Screw structure |
Performance (maximum distance) |
Power (speed of revolution) |
Screw SPEC (mm) |
Case SPEC (mm) |
|---|---|---|---|---|---|---|
 |
Horizontal(0°~5°) | Single | 2m³(6M) | 0.75kw(30rpm) | O.D:180 / I.D:100 / P:180 15T X 40W |
U Type, 3T |
| Double | - | - | - | - | ||
| Row(5°~20°) | Single | 1.2m³(6M) | 0.75kw(30rpm) | O.D:180 / I.D:100 / P:180 15T X 40W |
U Type, 3T | |
| Double | - | - | - | - | ||
| High(20°~35°) | Single | 1.2m³(6M) | 0.75kw(30rpm) | O.D:180 / I.D:100 / P:180 15T X 40W |
U Type, 3T | |
| Double | - | - | - | - |
 |
Horizontal(0°~5°) | Single | 3.5m³(8M) | 1.5kw(30rpm) | O.D:233 / I.D:133 / P:233 20T X 50W |
U Type, 4T |
| Double | 4.8m³(8M) | 2.2kw(30rpm) | O.D:233 / I.D:73 / P:233 20T X 50W, 12T X 30W |
U Type, 4T | ||
| Row(5°~20°) | Single | 1.7m³(8M) | 1.5kw(30rpm) | O.D:233 / I.D:133 / P:165 20T X 50W |
U Type, 4T | |
| Double | 2.3m³(8M) | 2.2kw(30rpm) | O.D:233 / I.D:73 / P:165 20T X 50W, 12T X 30W |
U Type, 4T | ||
| High(20°~35°) | Single | 0.7m³(8M) | 1.5kw(30rpm) | O.D:233 / I.D:133 / P:165 20T X 50W |
U Type, 4T | |
| Double | 1.2m³(8M) | 2.2kw(30rpm) | O.D:233 / I.D:73 / P:165 20T X 50W, 12T X 30W |
U Type, 4T |
 |
Horizontal(0°~5°) | Single | 6m³(10M) | 2.2kw(30rpm) | O.D:277 / I.D:157 / P:277 20T X 60W |
U Type, 4T |
| Double | 7.8m³(10M) | 3.7kw(30rpm) | O.D:277 / I.D:97 / P:277 20T X 60W, 12T X 30W |
U Type, 4T | ||
| Row(5°~20°) | Single | 3m³(10M) | 2.2kw(30rpm) | O.D:277 / I.D:157 / P:195 20T X 60W |
U Type, 4T | |
| Double | 4m³(10M) | 3.7kw(30rpm) | O.D:277 / I.D:97 / P:195 20T X 60W, 12T X 30W |
U Type, 4T | ||
| High(20°~35°) | Single | 1.5m³(10M) | 2.2kw(30rpm) | O.D:277 / I.D:157 / P:195 20T X 60W |
U Type, 4T | |
| Double | 2.2m³(10M) | 3.7kw(30rpm) | O.D:277 / I.D:97 / P:195 20T X 60W, 12T X 30W |
U Type, 4T |
 |
Horizontal(0°~5°) | Single | 7.6m³(12M) | 3.7kw(30rpm) | O.D:300 / I.D:170 / P:300 20T X 65W |
U Type, 5T |
| Double | 10m³(12M) | 5.5kw(30rpm) | O.D:300 / I.D:110 / P:300 20T X 65W, 12T X 30W |
U Type, 5T | ||
| Row(5°~20°) | Single | 3.5m³(12M) | 3.7kw(30rpm) | O.D:300 / I.D:170 / P:200 20T X 65W |
U Type, 5T | |
| Double | 4.5m³(12M) | 5.5kw(30rpm) | O.D300 / I.D:110 / P:200 20T X 65W, 12T X 30W |
U Type, 5T | ||
| High(20°~35°) | Single | 2m³(12M) | 3.7kw(30rpm) | O.D:300 / I.D:170 / P:200 20T X 65W |
U Type, 5T | |
| Double | 2.7m³(12M) | 5.5kw(30rpm) | O.D300 / I.D:110 / P:200 20T X 65W, 12T X 30W |
U Type, 5T |
 |
Horizontal(0°~5°) | Single | 14.3m³(15M) | 5.5kw(30rpm) | O.D:377 / I.D:227 / P:377 25T X 75W |
U Type, 5T |
| Double | 19m³(20M) | 7.5kw(30rpm) | O.D:377 / I.D:147 / P:377 25T X 75W, 15T X 40W |
U Type, 5T | ||
| Row(5°~20°) | Single | 7.2m³(15M) | 5.5kw(30rpm) | O.D:377 / I.D:227 / P:265 25T X 75W |
U Type, 5T | |
| Double | 9.3m³(20M) | 7.5kw(30rpm) | O.D:377 / I.D:147 / P:265 25T X 75W, 15T X 40W |
U Type, 5T | ||
| High(20°~35°) | Single | 4.5m³(15M) | 5.5kw(30rpm) | O.D:377 / I.D:227 / P:265 25T X 75W |
U Type, 5T | |
| Double | 5.8m³(20M) | 7.5kw(30rpm) | O.D:377 / I.D:147 / P:265 25T X 75W, 15T X 40W |
U Type, 5T |
 |
Horizontal(0°~5°) | Single | 17m³(12M) | 5.5kw(30rpm) | O.D:405 / I.D:245 / P:405 25T X 80W |
U Type, 5T |
| Double | 24m³(15M) | 7.5kw(30rpm) | O.D:405 / I.D:165 / P:405 25T X 80W, 15T X 40W |
U Type, 5T | ||
| Row(5°~20°) | Single | 8.3m³(12M) | 5.5kw(30rpm) | O.D:405 / I.D:245 / P:285 25T X 80W |
U Type, 5T | |
| Double | 11m³(15M) | 7.5kw(30rpm) | O.D:405 / I.D:165 / P:285 25T X 80W, 15T X 40W |
U Type, 5T | ||
| High(20°~35°) | Single | 5.2m³(12M) | 5.5kw(30rpm) | O.D:405 / I.D:245 / P:285 25T X 80W |
U Type, 5T | |
| Double | 6.7m³(15M) | 7.5kw(30rpm) | O.D:405 / I.D:165 / P:285 25T X 80W, 15T X 40W |
U Type, 5T |
 |
Horizontal(0°~5°) | Single | 22.8m³(20M) | 7.5kw(30rpm) | O.D:450 / I.D:290 / P:450 25T X 80W |
U Type, 5T |
| Double | 30m³(20M) | 11kw(30rpm) | O.D:450 / I.D:210 / P:450 25T X 80W, 15T X 40W |
U Type, 5T | ||
| Row(5°~20°) | Single | 10m³(20M) | 7.5kw(30rpm) | O.D:450 / I.D:290 / P:315 25T X 80W |
U Type, 5T | |
| Double | 14.5m³(20M) | 11kw(30rpm) | O.D:450 / I.D:210 / P:315 25T X 80W, 15T X 40W |
U Type, 5T | ||
| High(20°~35°) | Single | 6.6m³(20M) | 7.5kw(30rpm) | O.D:450 / I.D:290 / P:315 25T X 80W |
U Type, 5T | |
| Double | 8.7m³(20M) | 11kw(30rpm) | O.D:450 / I.D:210 / P:315 25T X 80W, 15T X 40W |
U Type, 5T |
VENDING MACHINE
| Edge Bending (T=mm) |
Roller Width (W=mm) |
Roller Diameter (Φ=mm) |
Moter Power (KW) |
Minimum Diameter (Φ=mm) |
Procesing Rate (Mm/min) |
|
|---|---|---|---|---|---|---|
8Feet |
3.2 | 2,500 | 200 | 3.7 | 400 | 4,000 |
| 6 | 2,500 | 230 | 7.5 | 450 | 4,000 | |
| 10 | 2,500 | 300 | 11 | 600 | 4,000 | |
| 13 | 2,500 | 320 | 15 | 650 | 4,000 | |
| 16 | 2,500 | 360 | 22 | 700 | 4,000 | |
| 20 | 2,500 | 400 | 30 | 800 | 4,000 | |
| 25 | 2,500 | 440 | 37 | 900 | 4,000 |
| Edge Bending (T=mm) |
Roller Width (W=mm) |
Roller Diameter (Φ=mm) |
Moter Power (KW) |
Minimum Diameter (Φ=mm) |
Procesing Rate (Mm/min) |
|
|---|---|---|---|---|---|---|
10Feet |
3.2 | 3,100 | 220 | 2.5 | 450 | 4,000 |
| 6 | 3,100 | 270 | 11 | 500 | 4,000 | |
| 10 | 3,100 | 320 | 15 | 650 | 4,000 | |
| 13 | 3,100 | 250 | 18.5 | 700 | 4,000 | |
| 16 | 3,100 | 400 | 30 | 800 | 4,000 | |
| 20 | 3,100 | 470 | 37 | 950 | 4,000 | |
| 25 | 3,100 | 510 | 45 | 1,000 | 4,000 | |
| 30 | 3,100 | 550 | 55 | 2,000 | 4,000 |
